Description

Discover the unparalleled security and durability of the 358 Prison Mesh, renowned for its impenetrable design and maximum-security features. This mesh system, with its 4mm wire construction and rectangular mesh configuration, offers exceptional resistance to cutting and vandalism, making it the top choice for high-security applications. Classified as an anti-climb system due to its finger and toe-proof mesh pattern, it's the ideal solution for highly risk-prone areas.

Extensively used by the Ministry of Defence around high-security sites, 358 Prison Mesh provides excellent through visibility while safeguarding against intrusion attempts. Additionally, its anti-corrosion protection ensures long-lasting performance even in harsh environments.

The Prison Mesh variant boasts incredible strength, making it resistant to cutting attempts and difficult to climb due to its mesh spacing. With options for pre-galvanization and powder coating, the gate is protected against rust development, ensuring durability and a sophisticated finish. Available in various RAL colours, you can coordinate the fencing with its surroundings seamlessly.

Installation is versatile, suitable for both soft and hard ground types, with options for Dig-In or Bolt–Down Posts. Choose from Clip or Clamp fixing options for ease of installation.

Popular for high-security systems, the mesh ensures safety with no exposed wires or sharp edges, making it suitable for locations such as schools and colleges. Despite its density, Prison Mesh offers good visibility for CCTV camera systems, allowing effective perimeter monitoring.

Applications

• Prisons
• Sport Stadiums
• Schoools and Hospitals

• Airports
• Commercial Sites

• Power Stations

• Industrial Estate

Content

• 1 x Panel
• 1 x Post
• 4 x Security Screws

• 4 x Mesh Clips OR

• 1 x Clamb Bar


Post System

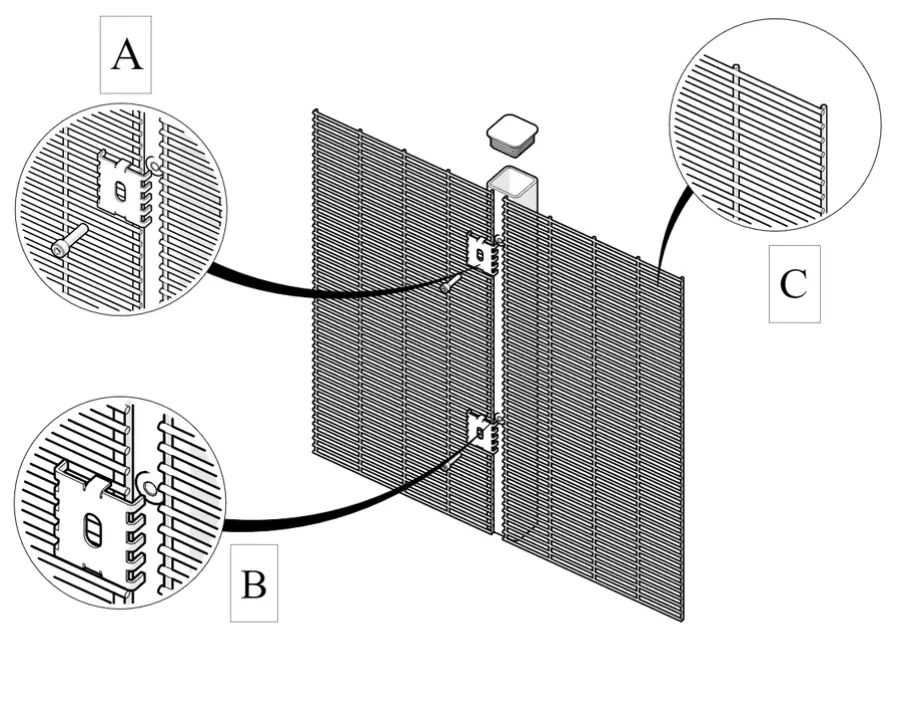

Fixings

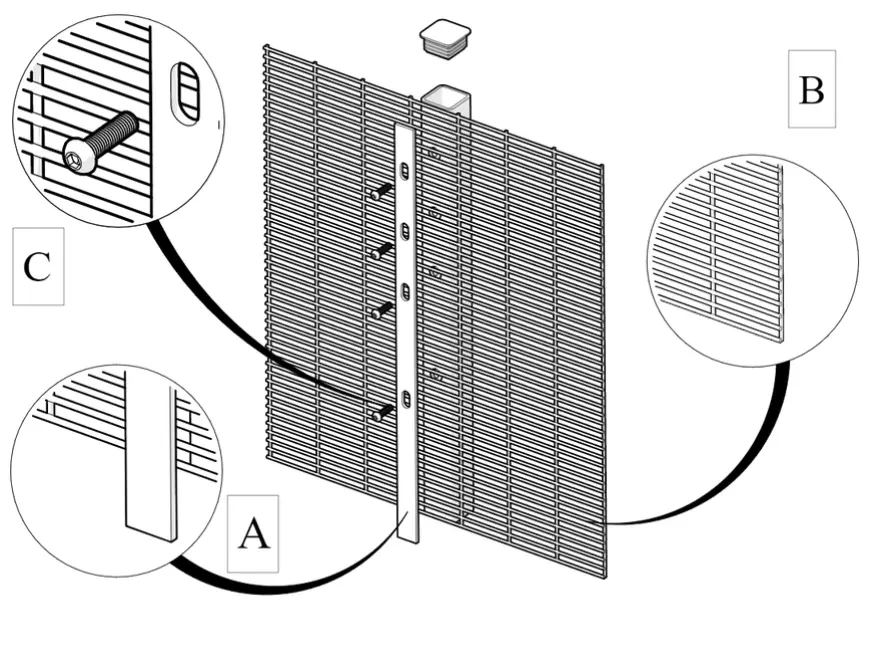

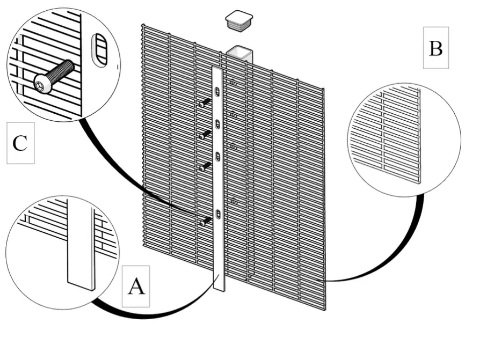

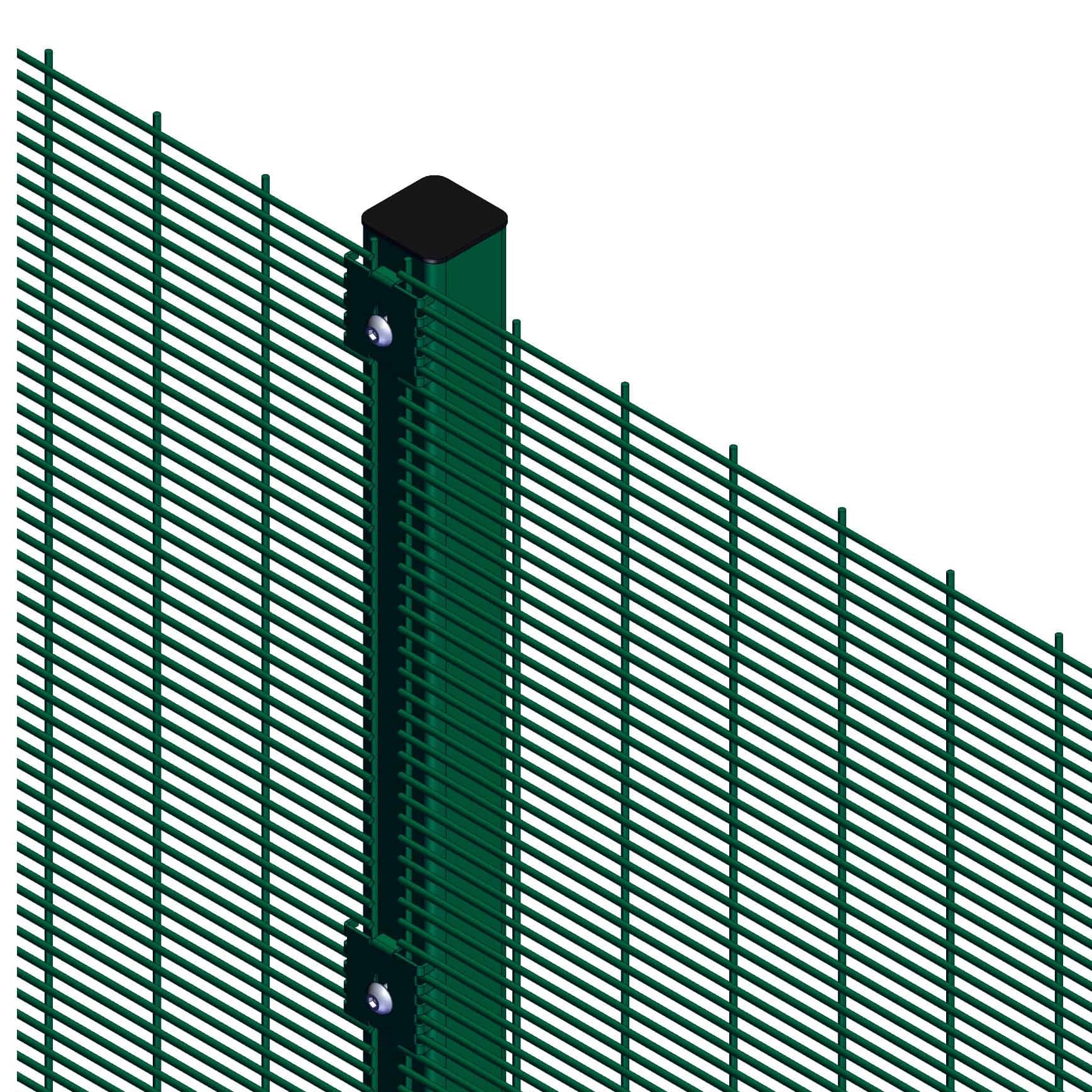

         CLIP SYSTEM                                                           CLAMP BAR SYSTEM

• Panels are produced from Galvanised wire to BS EN 10244-2:2001 class D.
• Panels are offered Zinc Phosphate pre-treatment and 100 microns Polyester powder coating on top of pre-galvanise wire (typically 80-100g/m² of Zinc prior to Weld) which gives long-lasting protection against the weather conditions.
• Standard stock colours: Green (RAL 6005) and Black (9005)
• There is an option of a wide range of RAL colours.
• All the panels are suitable for multi lift installation with suitable post posts.

Note:

• Above specification may alter from those illustrated due to continues improvement in design and specification.
• All the pictures are for illustration purpose and not to scale

Specification
