Description

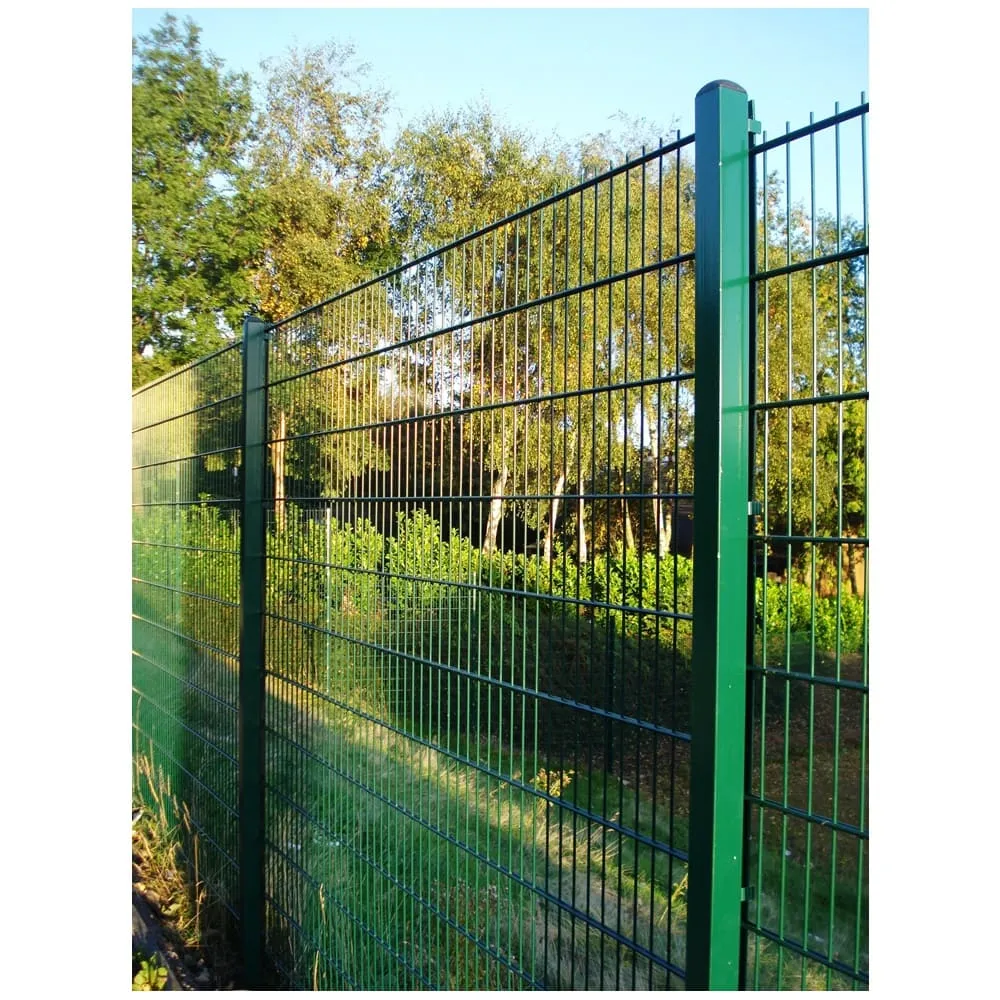

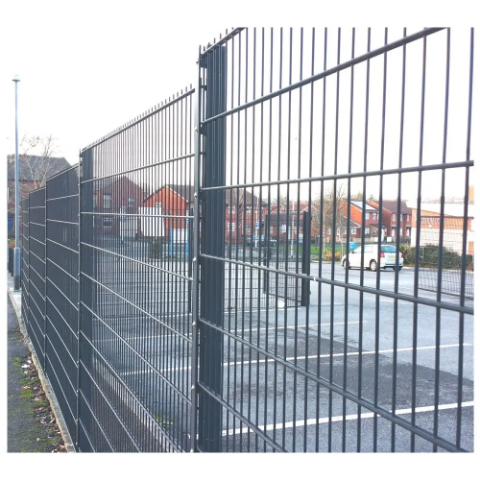

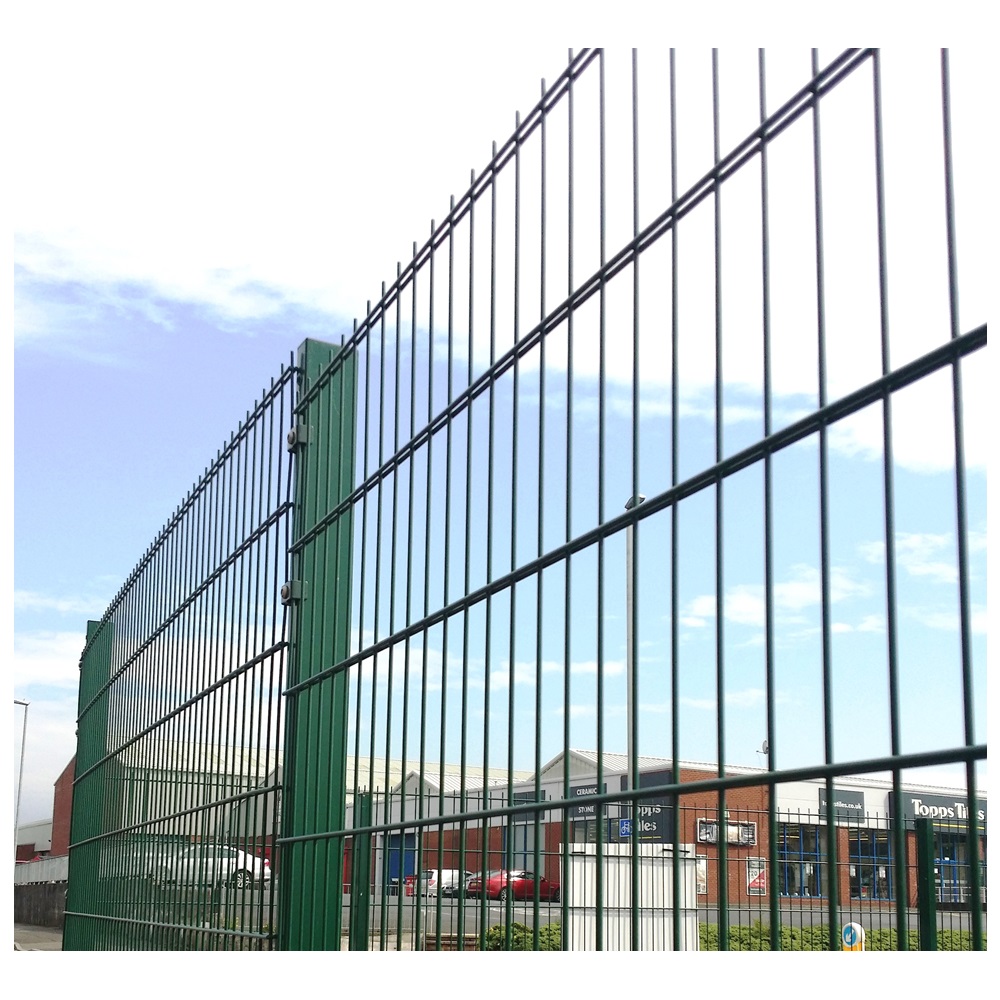

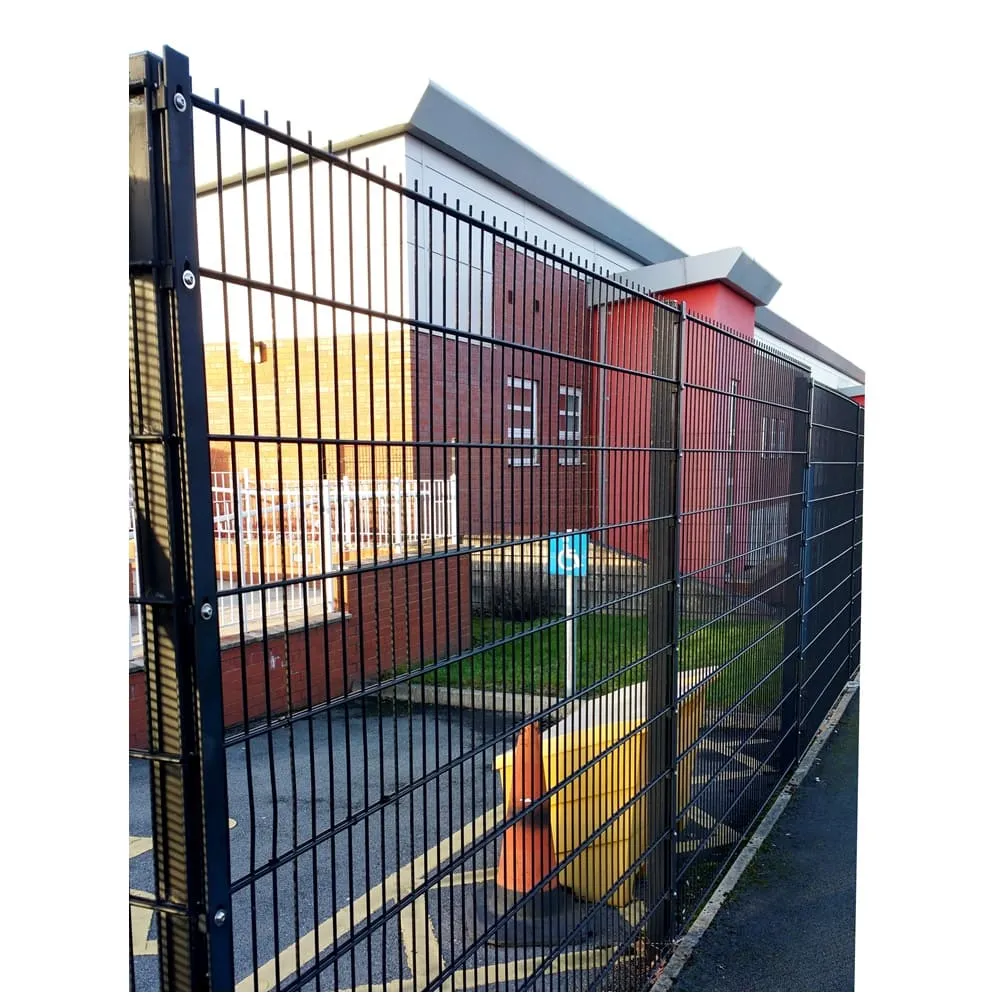

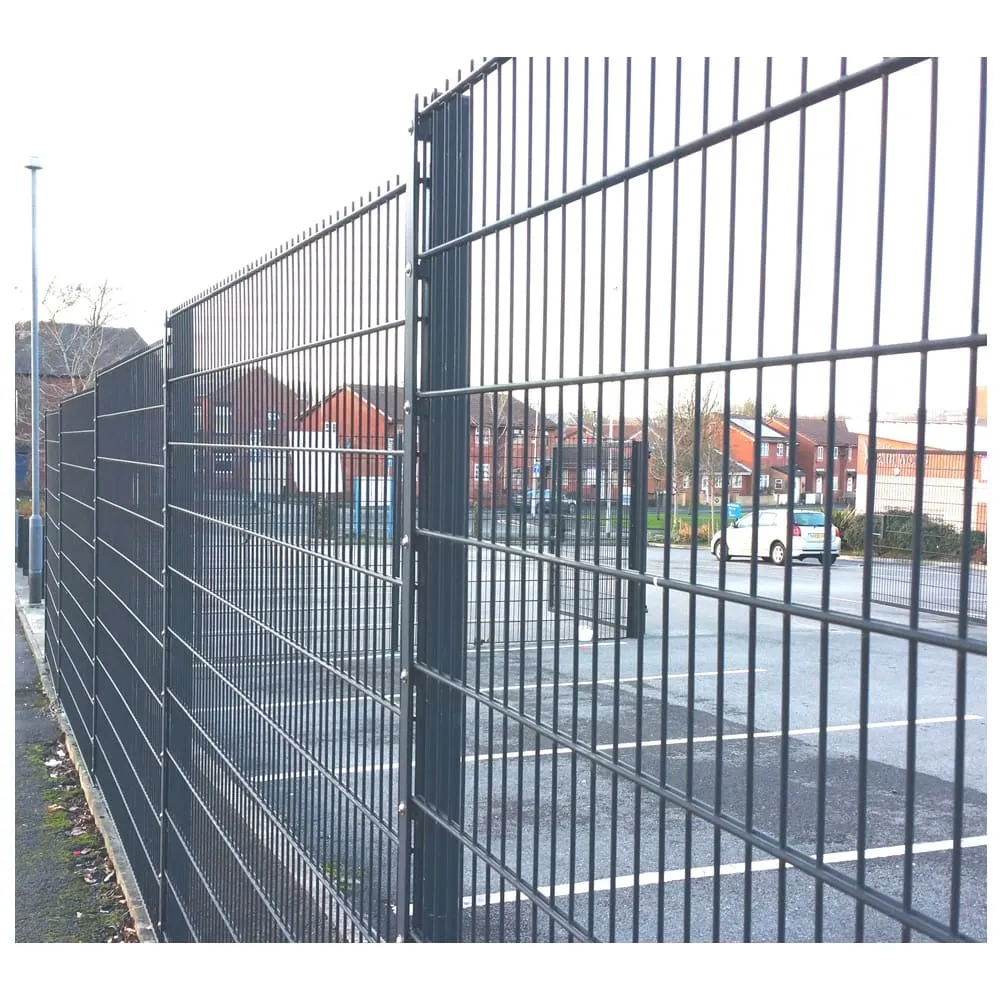

Introducing the 656 Twin Mesh Fence System, a versatile and robust solution designed to exceed the strength of traditional single wire systems. Featuring two horizontal wires on either side of the vertical wire, this heavy gauge welded mesh panel offers unparalleled rigidity and anti-tamper qualities, making it ideal for high-security applications.

Classified as a high-security fencing system, 656 Twin Mesh provides an effective barrier against intruders, offering peace of mind for property owners. Its sleek and elegant design, favoured by architects and specifiers, ensures an attractive appearance while maintaining superior functionality.

Constructed with 5mm diameter vertical steel wires pressed between twin 6mm diameter horizontal wires, this dual-layered mesh design offers exceptional resistance to cutting and climbing, providing enhanced security for your site.

Pre-galvanized and powder coated in a standard RAL colour for added durability and weather resistance, 656 Twin Mesh fencing offers a long lifespan with protection against external damage and vandalism. Custom and standard RAL colour options are also available to suit your aesthetic preferences.

Ideal for sites requiring a high-security perimeter, Twin Mesh fencing not only offers superior protection but also provides a safer environment for children and young people compared to other fencing types like palisade.

Applications

• Schools/Colleges
• Pitches
• Residential Areas

• Industrial Areas

• Sports Grounds

• Railway Stations

• Retail Parks

• Airports

Content

• 1 x Panel
• 1 x Post
• 4 x Security Screws

• 4 x Mesh Clips OR

• 1 x Clamb Bar

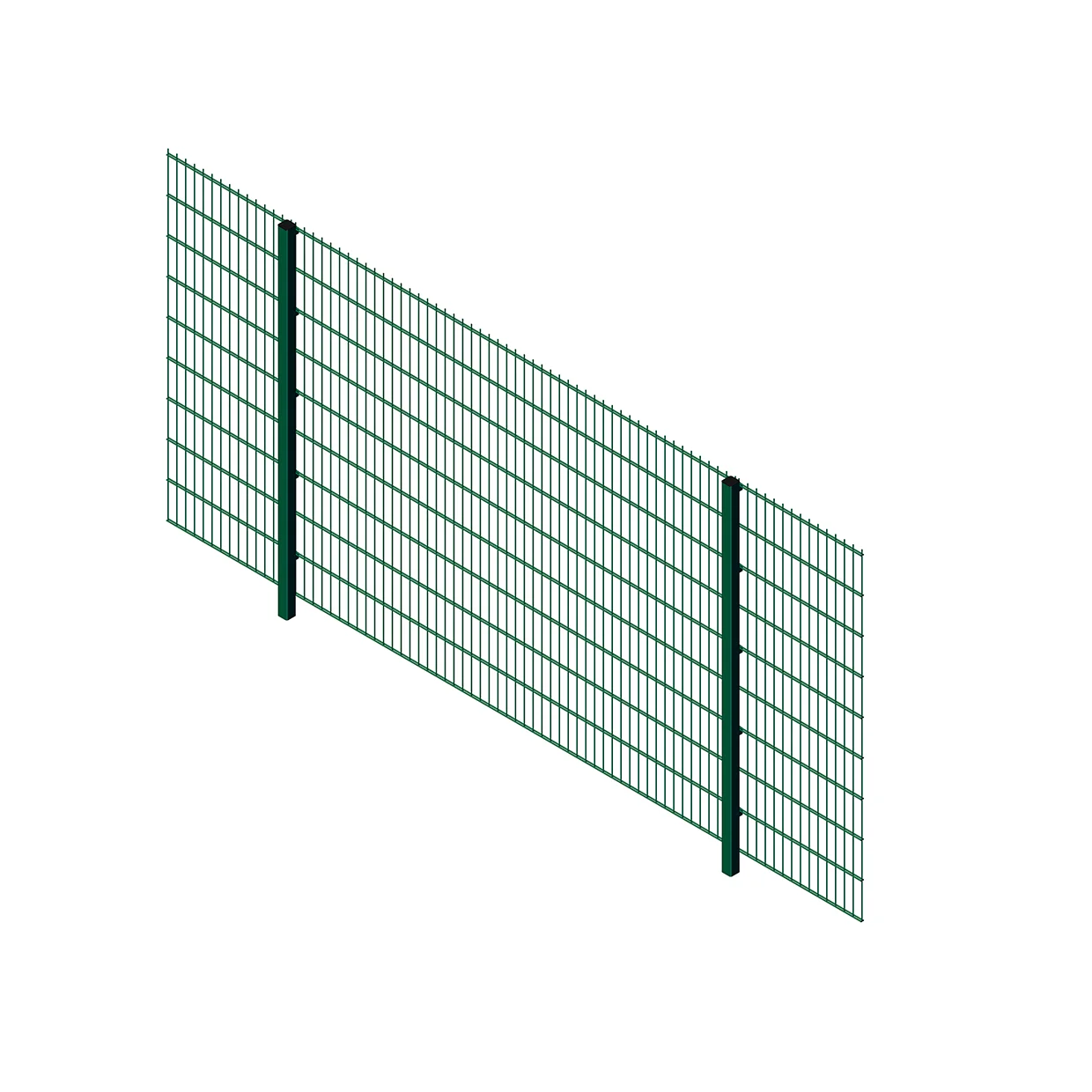

Post System

             Intermediate                         End                         Corner                                Cross

Fixings

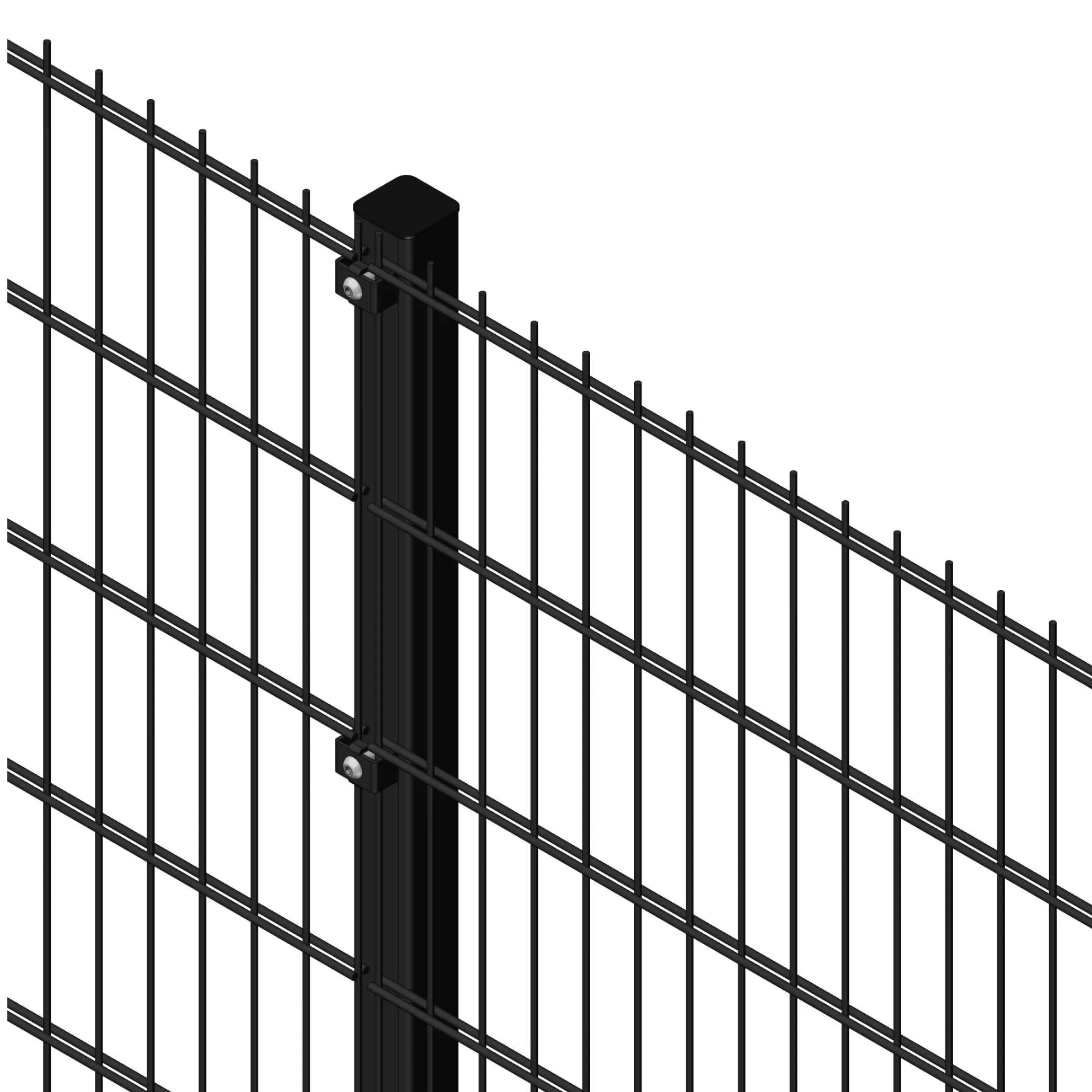

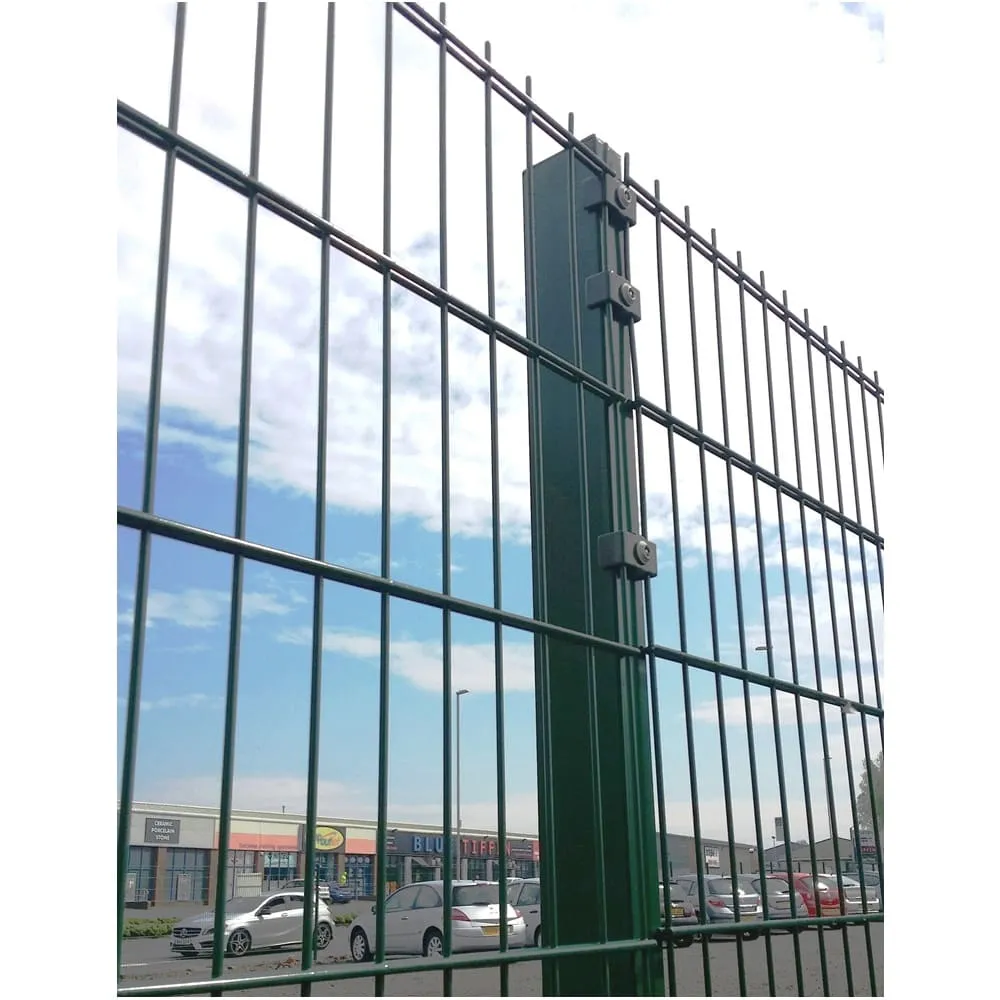

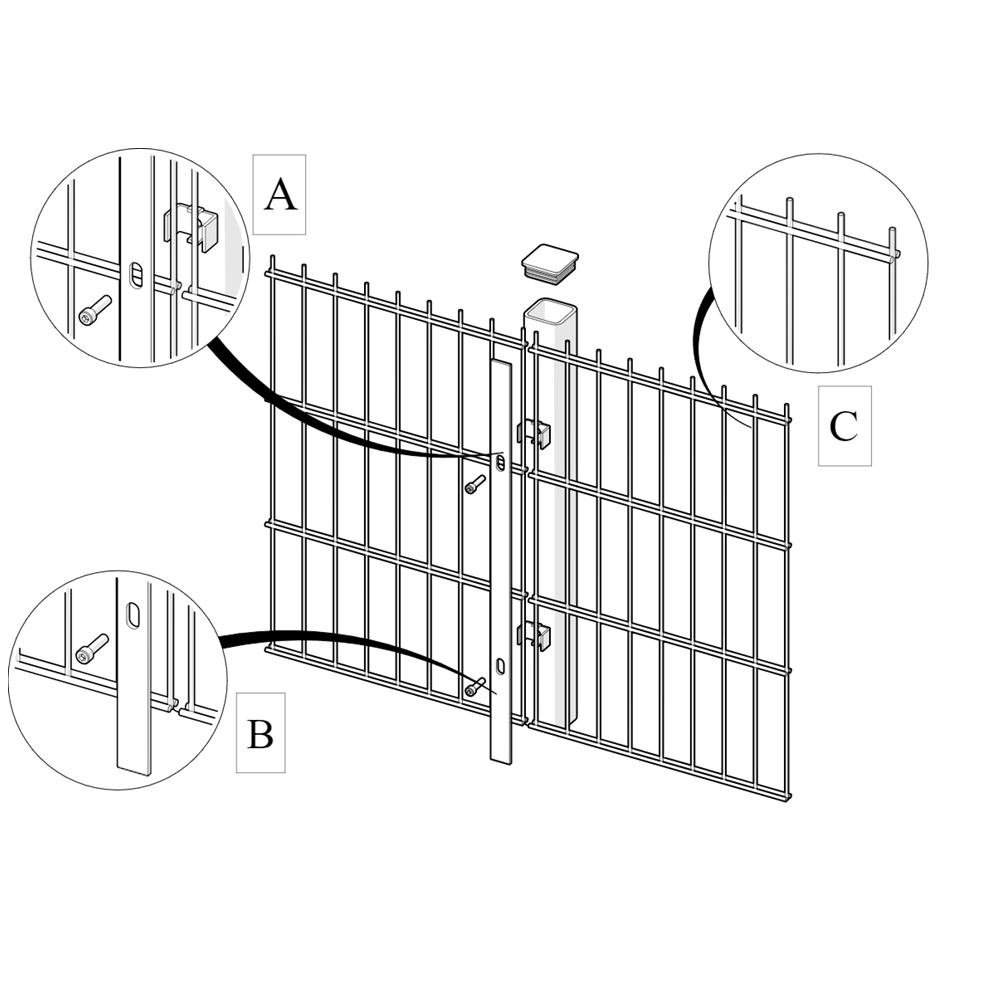

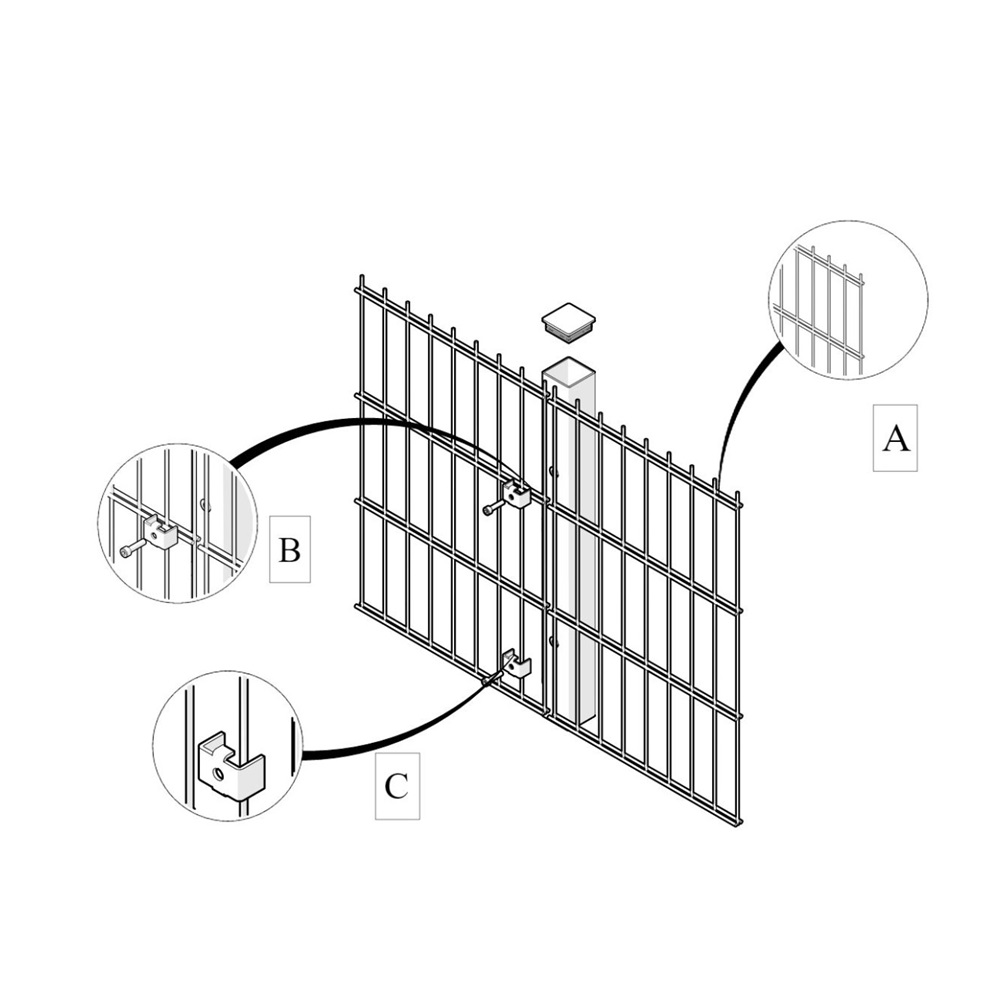

                   CLIP SYSTEM                                        CLAMP BAR SYSTEM

• Panels are produced from Galvanised wire to BS EN 10244-2:2001 class D.
• Panels are offered Zinc Phosphate pre-treatment and 100 microns Polyester powder coating on top of pre-galvanise wire (typically 80-100g/m² of Zinc prior to Weld) which gives long-lasting protection against the weather conditions.
• Standard stock colours: Green (RAL 6005) and Black (9005)
• There is an option of a wide range of RAL colours.
• All the panels are suitable for multi lift installation with suitable post posts.

Note:

• Above specification may alter from those illustrated due to continues improvement in design and specification.
• All the pictures are for illustration purpose and not to scale

Specification
