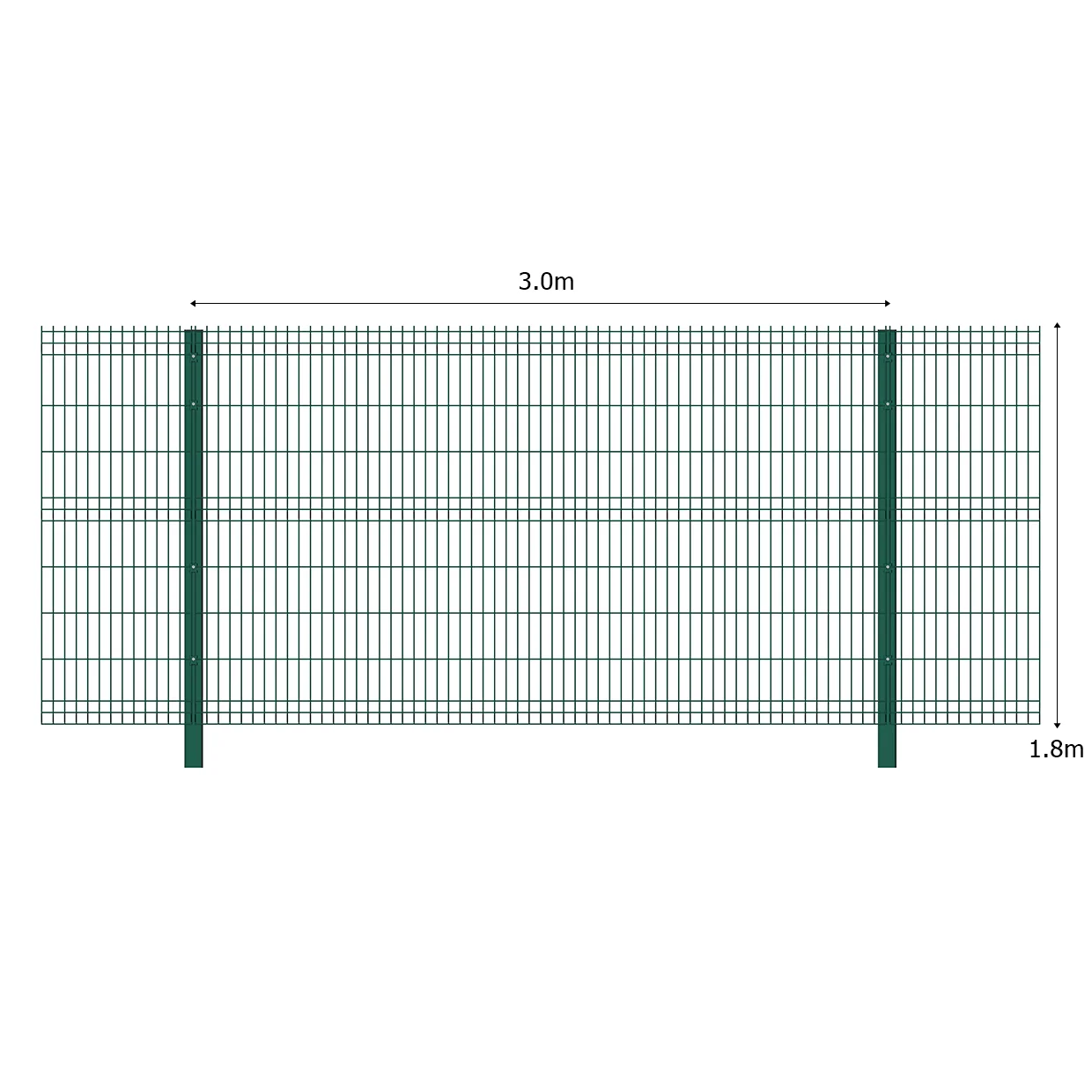

1.8m High V Mesh 45 Security Fencing Kit | Durable & Attractive Boundaries | Dig In (Inground) | Base Plated

£17.24 incl tax

Enhance your property's security and aesthetics with our 1.8m High V Mesh Security Fencing. Featuring robust 5mm wires and a distinctive V-shaped design, this fence offers durability, visibility, and easy installation. Ideal for residential, commercial, and public spaces.

Manufacturer: Fencing Mart Limited
Delivery date: 1-4 Weeks
*
*
This product has a minimum quantity of 3

Description

V Mesh fencing is a highly attractive and cost-effective solution, ideal for security fencing, perimeter fencing, boundary fencing, and school mesh fencing. This visually appealing fence is suitable for various uses, including boundary and anti-intruder applications. The panels feature distinctive 'V' shaped beams at the top, center, and bottom, enhancing both the appearance and providing integral support between the posts. The large open mesh welded profile offers inherent rigidity and an attractive look. Additionally, the fence is very easy and quick to erect, seamlessly integrating with a range of robust gates to provide a comprehensive security solution.



Applications

  • Residential Areas
  • Schools and Colleges
  • Commercial Sites
  • Ports
  • Stations
  • Airports
  • Lands

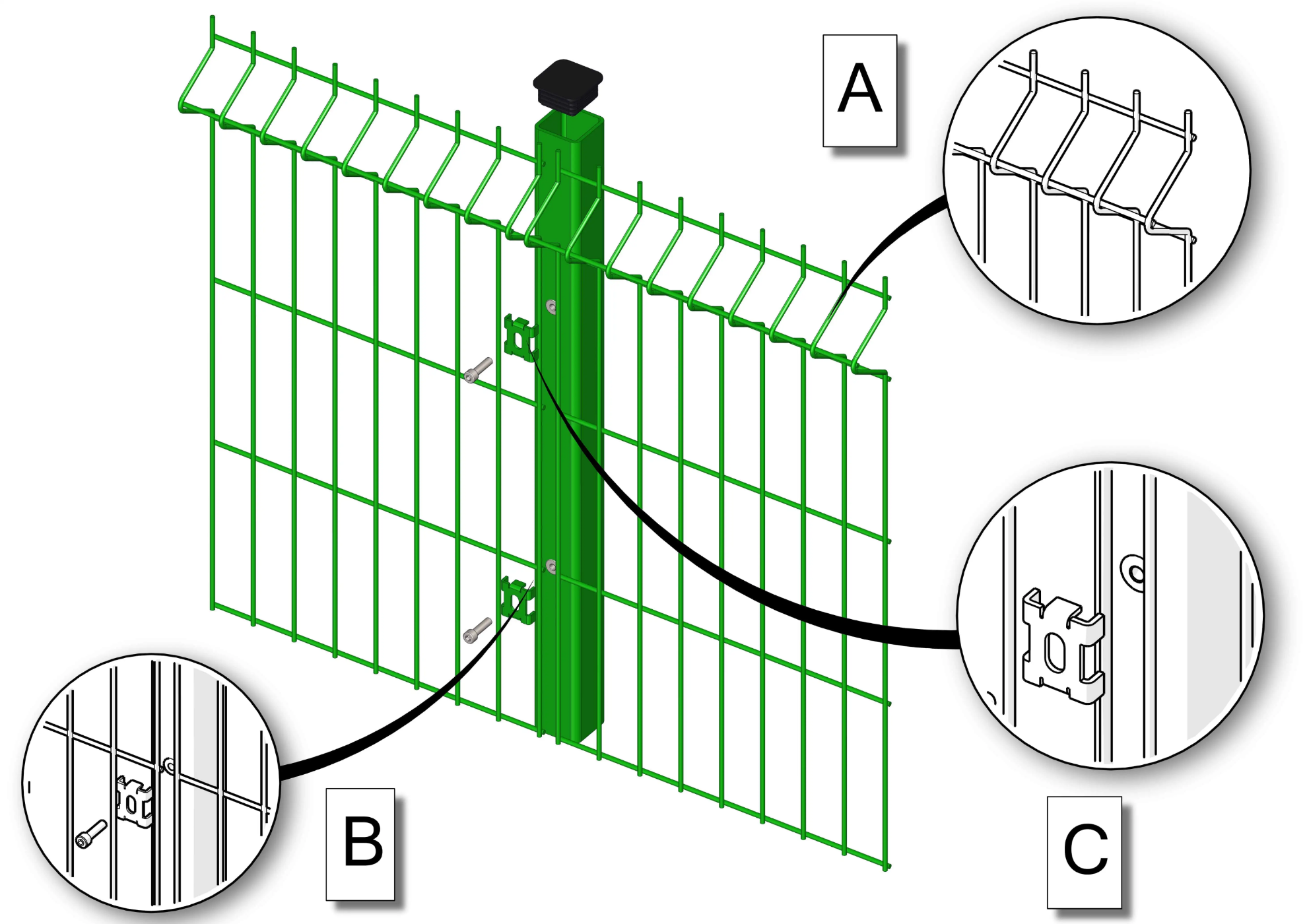

Post System

Fixings



Panels are offered Zinc Phosphate pre-treatment and 100 microns Polyester powder coating on top of pre-galvanise wire (typically 80-100g/m² of Zinc prior to Weld) which gives long-lasting protection against the weather conditions.

All the panels are suitable for multi lift installation with suitable post posts.
3m wide panels reduce installation cost by approximately 20%, when compared with 2.5m wide panels.



Note:

  • Above specification may alter from those illustrated due to continues improvement in design and specification.
  • All the pictures are for illustration purpose and not to scale

Specification

Mesh Pattern200mm x 50mm each interaction
Horizontal Wires5mm wires at 200mm centres
Vertical Wires4mm wires at 50mm centres
TopAll panels have a 30mm barbed edge
Post Centre3.025m approx
Standard FinishGreen (RAL6005) & Black (RAL9005)
Other ColoursThere is an option of wide range of other colours

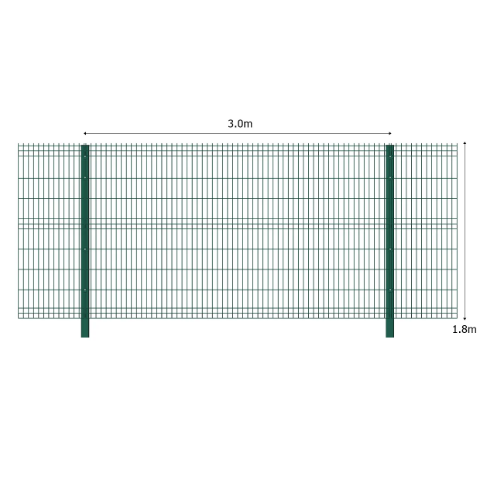

Fence HeightPanel Size H x W (mm)Beams (V)V Mesh 45 Panel (KG)Post Dimension (mm)Post Length (In Ground)
1.8m1730 x 3000313.8060x602.32m
1.2m1230 x 300029.8060x601.80m
1.5m1530 x 3000311.5060x602.05m
2.0m1930 x 3000315.2060x602.60m
2.4m2330 x 3000316.5060x603.00m
